Coil Winding Machine

Coil winding machine has the functions of automatic thread hanging, automatic thread cutting and automatic thread clamping. Each set of parameters can set parameters such as slot number, speed, turns, enameled wire tension, etc.; it has functions of real-time winding display and real-time fault alarm.

inquiry

Product details

Video presentation

shipin

Product features

01

Manual loading and unloading.

02

Automatic winding (two axis synchronous winding).

03

The machine model has the function of arranging wires, equipped with integrated scissors for cutting and clamping wires, and a centralized collecting device for thread ends.

04

The winding die can be changed quickly without special tools.

Product display

Coil Winding Machine

Sample Rotor

Technical Parameters

Item	Technical Specification

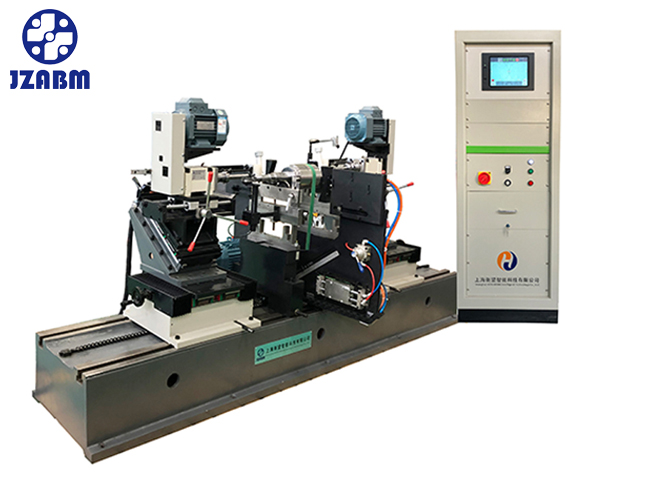

Equipment Name	Two station single flying fork coil winding machine
Model No.	RXDF02
Main configuration	PLC：Yaskawa, Leadshine
	HMI: Proface, Artrich
	Sensor：Contrinex、OMRON、KEYENCE、Panasonic
	Drive Motor：Yaskawa
	Cylinder：SMC
Rotor diameter	Ф17-Ф45mm
Commutator diameter	Ф5-Ф25mm
Rotor stack length	15-60mm
Rotor shaft length	≤100mm
Rotor shaft diameter	Ф2.3-Ф10mm
Winding diameter	Ф0.4-Ф1.0mm
Power	AC380V (3-phase 5-wire) 2.1KVA
Working air pressure	0.5-0.8Mpa
Winding speed	0~2000 rpm
Diameter size	660x 1200 x1535mm
Weight	500kg
