Automatic Shaft Straightening Machine-JZABM

Automatic Straightening Machine

1. Test fixture fixture precision design and processing, select high-precision displacement sensor to ensure test accuracy;
2. Equipped with high-precision position control loading system to improve alignment accuracy;

inquiry

Product details

Video presentation

Product features

01

Test fixture fixture precision design and processing, select high-precision displacement sensor to ensure test accuracy;

02

Equipped with high-precision position control loading system to improve alignment accuracy;

03

Coordinating and controlling the various components to shorten the straightening processing beat;

04

Quick change tooling and fixture, parameterized adjustment and changeover, automatic tool setting, improve the efficiency of changeover;

05

With historical trace function, with 16g memory card to store processing information, reserved communication interface with the host computer;

06

Perfect abnormal situation alarm prompt information to facilitate equipment maintenance;

07

The purchased parts adopt the commonly imported high-quality brand, and the life is good, which is convenient for purchasing and stocking.

Product display

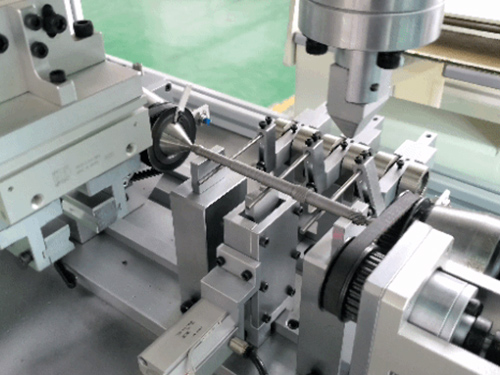

Automatic Shaft Straightening Machine Manufacturer

Sample Rotor

Technical Parameters

Item	Technical Specification
Equipment name	Jizhi Automatic Shaft Straightening Machine Manufacturer
Main components	Servo motor: Mitsubishi
	Displacement sensor: Keyence/Japan
	PLC: Keyence/Japan
	Cylinder: SMC
	Touch screen: Keyence/Japan
	Step motor: Oriental Motor
	Bearing: NSK
	Guide screw: THK
Voltage	5KW
Power	380V Three-phase five-wire
Air supply	0.5mpa
Shaft diameter	≤ 25mm
Shaft length	≤ 600mm
Shaft weight	≤ 10kg
Measuring speed	30-120rpm
Minimum achievable residual runout	0.005mm
Weight	1T
Dimension	128020001800mm
