Turbo Balancing Machine-Turbocharger Balancer-JZ

Turbo Balancing Machine

With High efficient, Machine cycle time ≤10S
Jumping ＜0.015gmm（ the initial value of armature is below 0.1gmm）
Easy operation. For operator, it just spends short time on training.

inquiry

Product details

Video presentation

Product features

01

With High efficient, Machine cycle time ≤10S

02

Jumping ＜0.015gmm（ the initial value of armature is below 0.1gmm）

03

Easy operation. For operator, it just spends short time on training.

Product display

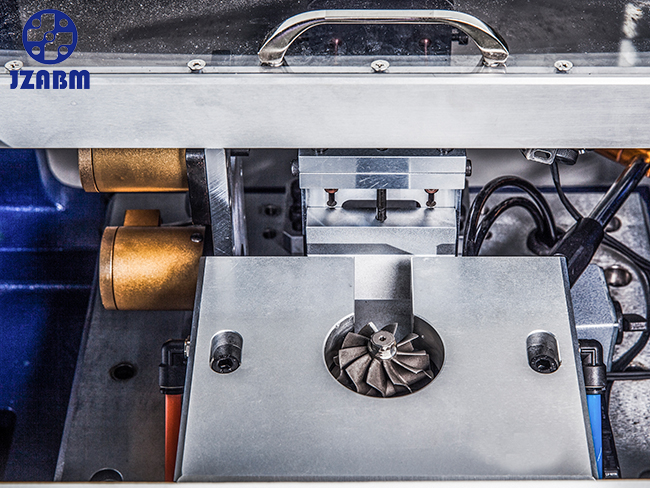

balancing test machine for turbocharger

Sample Rotor

Technical Parameters

Jizhi Turbo Balancing Machine
Item	Machine Specification
Machine name	Jizhi Tuorbo Balancing machine
Model no.	T-W
Main components specification	Sensor : KEYENCE, OMRON, CONTROLWAY
	Vibration sensor: JIZHI
	Touch screen : KEYENCE 10.4'
	Control PLC: KEYENCE
	Data collection: KEYENCE,NI
	Cylinder: SMC
	Air bearing: JIzhi
Rotor apply range	Car turbocharger
Speed	3200rpm
Power supply	AC220V
Air supply	0.4~0.6Mpa
Cycle time	≤10s
Repetitiveness	±2mg
Volume	630x 900 x1400mm
