EV Motor Special Balancing Machines

The hardware filter circuit is used to reduce the interference of external vibration and other interference, and can achieve high-precision measurement.

inquiry

Product details

Video presentation

Product features

01

The hardware filter circuit is used to reduce the interference of external vibration and other interference, and can achieve high-precision measurement.

02

Adopt servo motor pulse control to control the angle of unbalance, which can realize precise positioning.

03

Since there is actually no rotor with zero unbalance, the correction method of this device adopts the unbalance electric zero adjustment method, so there is no need to specially make a standard rotor with zero unbalance.

04

Because it uses PLC control and is equipped with a fully functional software system, the relevant setting parameters and rotor types can be set and input at one time, and can be called arbitrarily in the future.

Product display

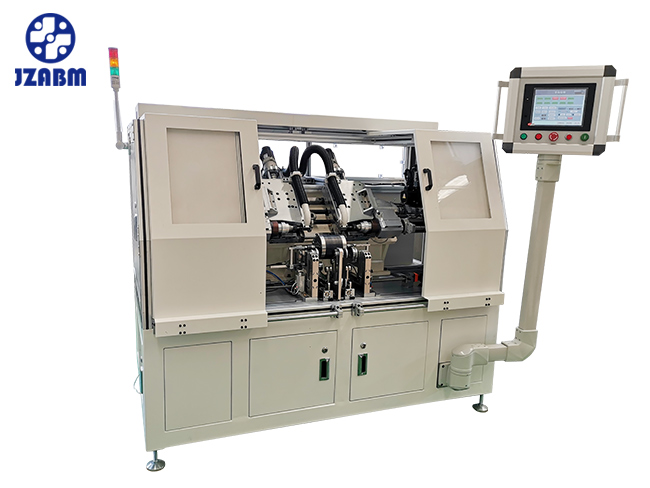

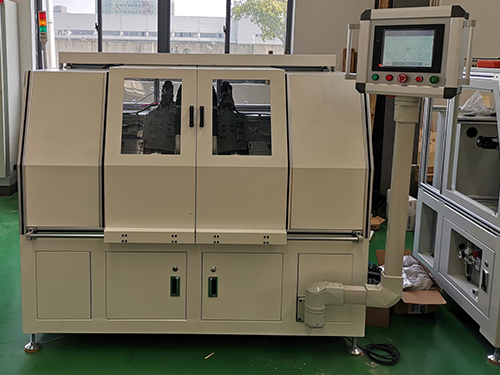

EV Motor Special Balancing Machines

Sample Rotor

Technical Parameters

Automatic Balancing Machine for EV Motor ( Driving Motor of Passenger Car )
Volume	2000mm(L)X1700mm(W)X1200mm(H）
Weight	2T
Unbalance accuracy	G0.4~G2.5
Miniumum residual unbalance	0.1gmm/kg
Unbalance removal rate	≥95%
Once removal rate	≥90%
Mearsuring speed	1080～2150rpm (may change according to different rotor diameter and weight)
Cycle time	100s(may change according to the initial unbalance）
Working capability	Cm＞1.67；Cmk＞1.67
Overall Equipment Effectiveness（O.E.E.）	≥85%
Noise level	＜80db
Type conversion time	≤15min/person
Rotor diameter	Φ90-φ240mm
Rotor stack length	70-300mm
Rotor shaft diameter	φ20-φ80mm
Rotor length	150-550mm
Rotor weight	5-50kg
Cutting position diameter	φ90-φ220mm
Cutter diameter	5-12mm
