1. Automatic loading and unloading of the assembly line, automatic separation after the rotor is qualified, simple operation
2. Cycle time is short, high efficiency, suitable for mass production
Automatic loading and unloading of the assembly line, automatic separation after the rotor is qualified, simple operation
Cycle time is short, high efficiency, suitable for mass production
It can be operated by a single machine, can be connected to a fully automatic rotor production line, and can be equipped with an MES system
According to the characteristics of the workpiece, it can be drilled in angular (chamfering), radial and axial directions to remove weight
The main electrical components adopt brand components, and the equipment performance is stable and reliable
Soft-supported high-precision measurement system, high accuracy of measurement data and good repeatability
Fully independent intellectual property rights, special products can support highly customized solutions
Photoelectric safety protection, automatic alarm and shutdown in case of failure

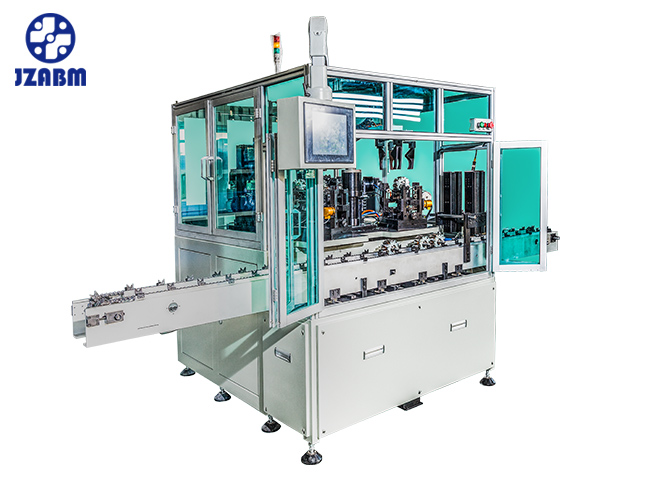

Jizhi Five-station Automatic Balancing Machine for Generator Rotor | |
Item | Machine Specification |
Machine name | Five-station automatic balancing machine for generator(Embedded software products - Jizhi five-station generator control software V1.0) |
Model no. | BFZSZ-5L-A |
Main components specification | Cylinder : SMC |
Servo motor : Mitsubishi | |
Sensor : KEYENCE, OMRON, CONTROLWAY | |
Touch screen : KEYENCE VT5 | |
Control PLC: KEYENCE KV-3000 | |
Stepping motor: Oriental motor | |
Rotor apply range | Car generator rotor (standard), Various types of drilling rotors (customized) |
Rotor stack length:20-60mm (standard) | |
Rotor diameter: Φ80-120mm (standard) | |
Speed | 1380-2100rpm |
Cutting method | Drilling |
Power supply | AC380V |
Air supply | 0.4~0.6Mpa |
Cutting method | Drilling |
Cycle time | 20-25s |
Residual unbalance | Better than G6.3 |
Volume | 1700 x 3200 with assembly line (or 1500 without assembly line) x 1800 mm |
Remark: Based on actual specifications (can be negotiated accroding to customer's requiement)
