Automatic single or multi-station vertical flywheel balancing machines designed for high volume production lines with high efficiency.
inquiry
Single-sided balance, welding balance weight with balance, quick changeover, parameter adjustment, simple operation and strong compatibility;
It can be single machine automatic balance, can be connected to automatic line for automatic production, and can be equipped with MES system to realize data traceability;
Welding features: equipped with automatic welding block feeding function, the welding position can be selected to avoid specific areas.
Due to the stable sales of Jizhi equipment, conventional products have been standardized and generalized, and more than 70% of the parts are interchangeable.

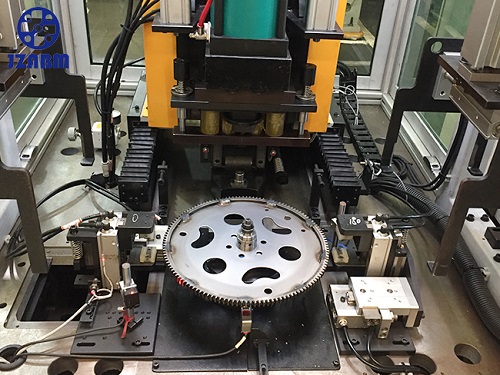

Automatic welding machine for double mass flywheel | |
Type | BPHDH-1W-C |
Main compinents | Cylinder:FESTO/SMC |
Sever motor:MITSUBISHI/PANASONIC | |
Sensor:KEYENCE\OMRON\CONTRINEX | |
Touch pan:KEYENCE | |
Control PLC:KEYENCE | |
Welding transformer and controller:REXROTH | |
Workpiece | Weighting balance correction for resistance welding for double mass flywheel workpiece |
Weighting balance correction for resistance welding for Other disc parts | |
Measuring speed | 600~900rpm |
Jig type | Single cone expansion sleeve / double cone expansion sleeve |
Workpiece placement attitude | Install datum facing down |
Balance correction method | Resistance welding |
Automatic feeding and unloading line | (Optional) |
Power | 3-PHASEAC380V |
Working air pressure | 0.4~0.6MPA |
Cycle time | 40S(Including initial test, weighting correction and retest) |
*Depending on the workpiece, there will be differences | |
Retest precision | ≤1gmm/kg |
Residual volume | G0.4~1.0 |
Volume | 2000MM(legth)X2000MM(height)X1800(depth)MM(No conveyor) |
3400MM(legth)X3000MM(height)X1800(depth)MM(With conveyor) | |
Machine weight | 4T |
Consumption | 45KW |
Remark: Based on actual specifications (can be negotiated accroding to customer's requiement)
