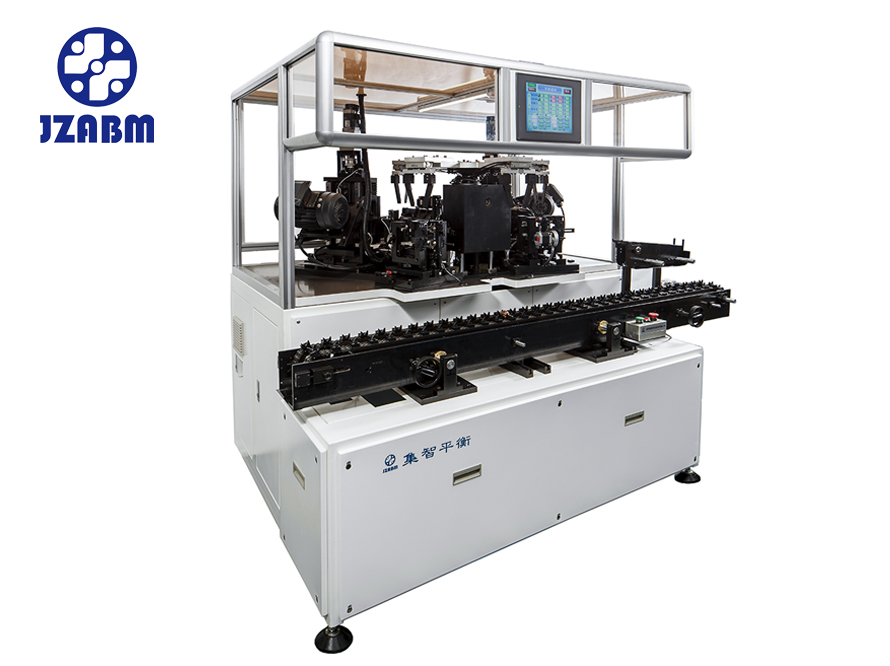

Motor Dynamic Balancing Equipment

Jizhi Motor Dynamic Balancing Equipment is suitable for dynamic balance correction of 357 series micromotor rotors with short stack height and high balance requirements. It is compatible with the dynamic balance correction of some brushless rotors with an outer diameter of less than 40mm.

inquiry
Video presentation

Product features

01

Automatic loading and unloading, automatic separation after the rotor is qualified, simple operation.

02

High efficiency, suitable for mass production.

03

Fault alarm prompt, easy maintenance.

04

It can be operated by a single machine, can be connected to a fully automatic rotor production line, and can be equipped with an MES system.

05

Use P-type milling cutter to mill silicon steel sheet or balance ring to remove weight.

06

The main electrical components adopt international first-line brands, and the equipment performance is stable and reliable.

07

Soft support high-precision measurement system, high accuracy of measurement data and good repeatability.

08

Fully independent intellectual property rights, special products can support highly customized solutions.

Product display

Motor Dynamic Balancing Equipment

Sample Rotor
rotor sample
rotor sample
rotor sample
Technical Parameters
Item Machine Specification
Machine name  Jizhi Two station P type automatic motor dynamic balancing equipment
Model no. BDXDP-2WI-A
Main components  Cylinder : SMC
Servo motor : Mitsubishi
Sensor : KEYENCE, OMRON, CONTROLWAY
Touch screen : KEYENCE 10.4
Control PLC: KEYENCE KV-3000
Stepping motor: Oriental motor
Rotor apply range Rotor diameter: Φ17mm-40mm
Speed  1500-2100rpm
Cutting method  milling blades
Power supply AC380V
Air supply  0.4~0.6Mpa
Cycle time  15S
Residual unbalance Better than G6.3
Volume 940X 1357 X 1730mm

Remark: Based on actual specifications (can be negotiated accroding to customer's requiement)

product details
balancing machine detail
balancing machine detail
balancing machine detail
