Rotor Dynamic Balancing Machine

Jizhi automatic dynamic balancing machine is mainly suitable for the dynamic balance correction of various types of micro wound rotors such as electric tools, small household appliances, and automobile starting motors; compatible with some brushless motor rotor dynamic balance corrections

inquiry

Product details

Video presentation

Product features

01

Wide range of application, quick changeover, suitable for quick change of small batches and multiple varieties.

02

Fully automatic measurement and weight removal, simple training can be on duty operation.

03

Manual loading and unloading, sound and light prompt for qualified judgment, one person can operate two machines at the same time.

04

Failure alarm prompt, easy maintenance; photoelectric safety protection, automatic alarm and shutdown when failure occurs.

05

It can be equipped with a separate automatic assembly line or a fully automatic rotor production line.

06

Soft-supported high-precision measurement system, high accuracy of measurement data and good repeatability.

Product display

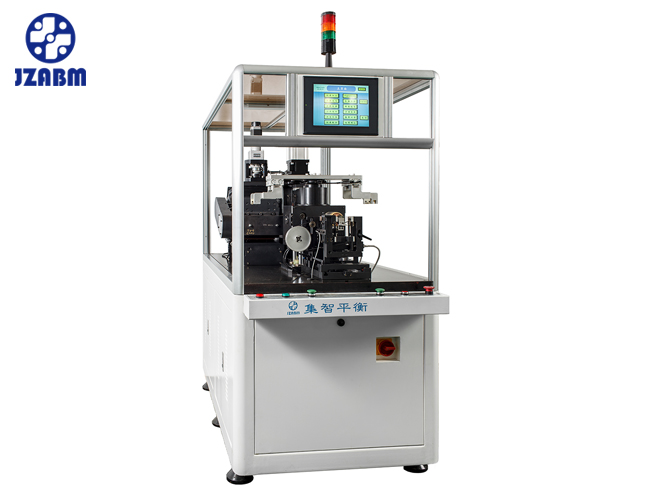

two station automatic balancing machine

Sample Rotor

Technical Parameters

Items	Machine Specification
Type	Jizhi Two Station Armature Automatic Balancing Machine
Main components configuration	Solenoid valve: SMC, New-Era Sensor: KEYENCE,Baumer HMI: KEYENCE 10.4 Control PLC: KEYENCE KV-1000 Stepping motor: Oriental Motor
Armature Diameter	Below 1.6KG Stack lamination: 20-70mm Armature diameter: Φ25-40mm(type Ⅱ) Armature diameter: Φ35-50mm(type Ⅲ）
Balancing speed	1500-2200rpm
Milling method	R-shape
Power	AC380V
Air supply	0.4~0.6Mpa
Cycle time	13~20S (profile milling)
Residual volume	Better than G6.3
Dimension	1700 x 850 x 1550 mm
